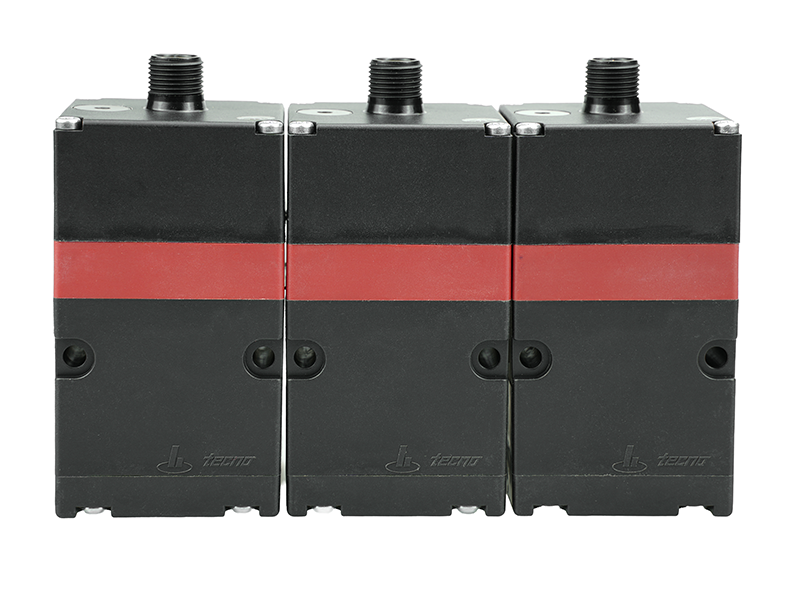

Tecno plus is a high-flow, piezo-piloted proportional pressure regulator with 0-2, 0-6, 0-10 and 0-16 bar variants. Voltage or current setpoints, 0-10 V pressure feedback and a pressure-reached status output support dynamic pneumatic pressure control. Flow capacity and protection class depend on the variant.

Contact Now Return to Products

Features

Piezo pilot with electronic closed-loop pressure control
0-10 V or 4-20 mA setpoint, depending on model
0-10 V pressure feedback and pressure-reached output
Maximum nominal power 0.8 W

General specifications

Power supply24 V DC ±10%

Maximum nominal power0.8 W

Current (excluding digital output load)30 mA

Voltage setpoint (PS120100)0-10 V

Current setpoint (PS120101)4-20 mA

Analog pressure feedback0-10 V; ≤1 mA

Repeatability / hysteresis<0.2% p2max

Linearity (+20 °C)<0.5% p2max

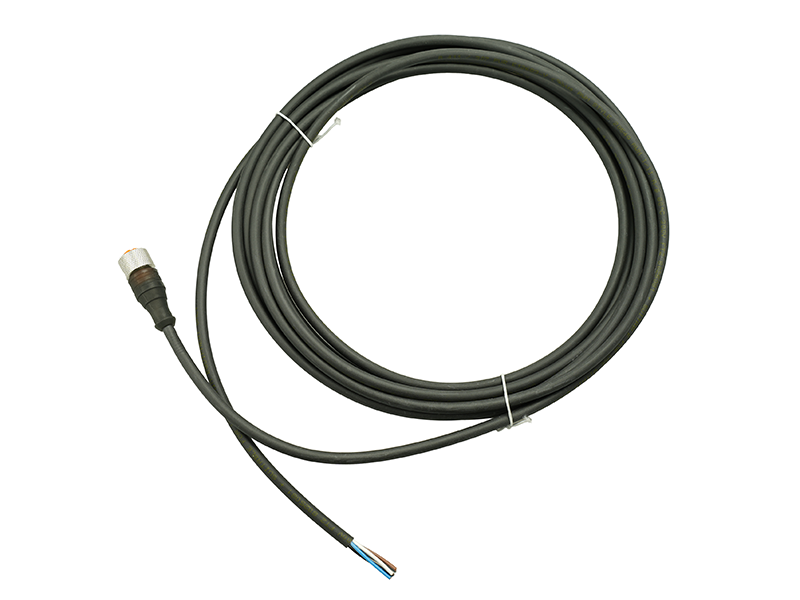

Electrical connectorM12×1, 5-pin

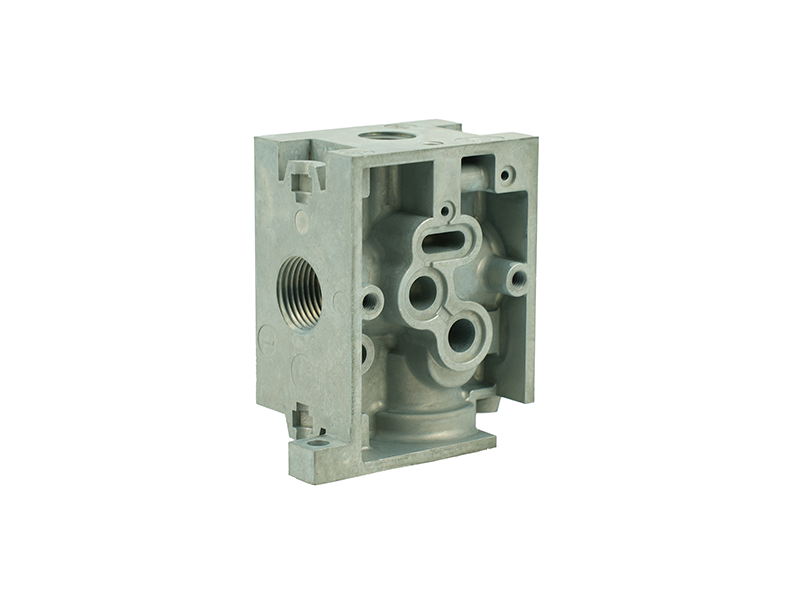

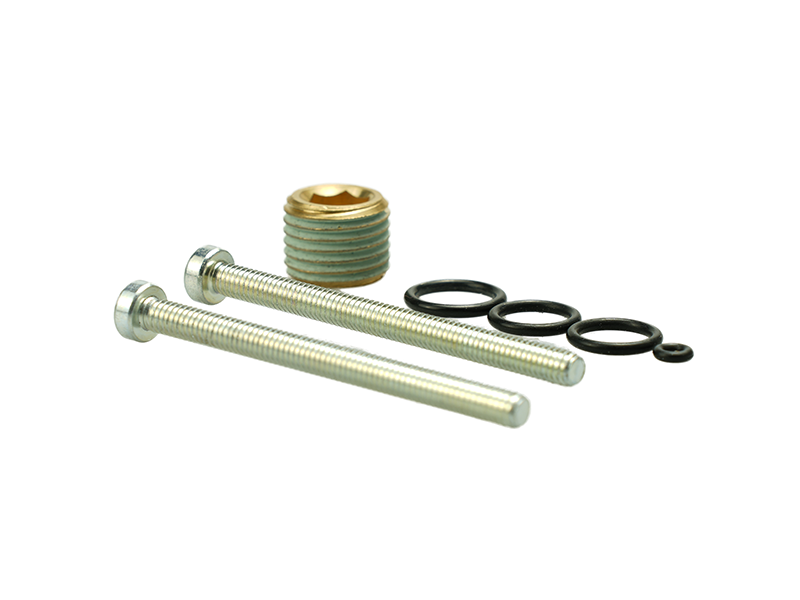

Base plate ports / boreG1/4 / 6 mm

Ambient / medium temperature0…+50 °C

Storage temperature-20…+60 °C

↔ Swipe horizontally to view all specifications

Pressure variants
Pressure code	Output pressure	Supply pressure p1	Nominal flow QN	Maximum flow Qmax	Protection
020	0-2 bar	1.5-7 bar	1000 L/min	1100 L/min	IP65*
060	0-6 bar	1.5-10 bar	1000 L/min	1600 L/min	IP65*
100	0-10 bar	2-12 bar	1000 L/min	1600 L/min	IP65*
160	0-16 bar	2-17 bar	600 L/min	2400 L/min	IP54

Conditions and selection notes

Repeatability, hysteresis and linearity are relative to the maximum output pressure p2max of the selected variant. Linearity is specified at +20 °C.
Maximum flow is the upper limit under test conditions and must be distinguished from nominal flow. For 2/6/10 bar variants, maximum flow is measured at maximum supply pressure p1max and minimum output pressure p2min = 0 bar. Actual flow depends on supply pressure, output pressure and load.
* IP65 requires a connected plug and separately routed main exhaust (3) and pilot exhaust (13). The 16 bar version is IP54.

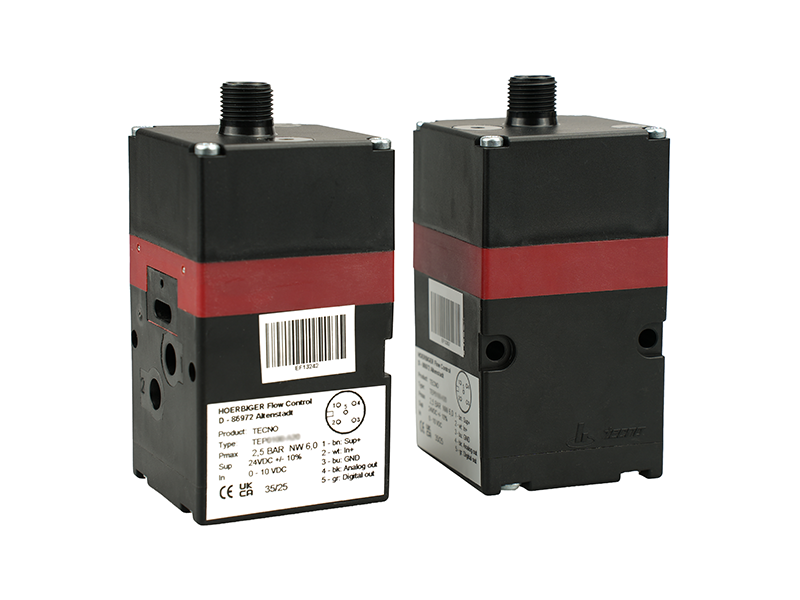

Pressure reached is a digital switching output indicating that pressure is within the setpoint tolerance. Analog pressure feedback is 0-10 V. M12 pins: 1=24 V, 2=setpoint, 3=GND, 4=analog feedback, 5=digital status.
Example PS120101-060-0xx: 4-20 mA setpoint, 0-6 bar output, nominal flow 1000 L/min and maximum flow 1600 L/min. Control gain is adjustable using kit PS12424-A.
Supply pressure must be at least 1 bar above the highest required output pressure and within the limits of the selected variant. Use clean compressed air meeting the model requirements and keep exhaust ports unobstructed.
